Rapid Point of Care RT-PCR Testing Solution

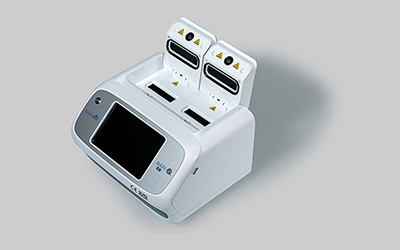

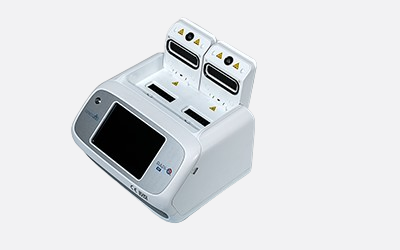

Rapi-Q HT Rapid POC RT-PCR Testing Solution

From sample to results in ~30 minutes or more (based on test parameter) for up to 32 samples.

Specifications
Size	300x267x198 mm	Transportation and storage temperature	-20~55°C
Weight	11Kg	Sample capacity	32 x 0.2ml
Power Supply	220V	Applicable consumables	Dedicated consumables
Communication Interface	USB 2.0	Temperature range	0~100°C
Operating Environment Temperature	18~35°C	Temperature control accuracy	± 0.25°C
Sensitivity	1 Copy	Maximum Ramp Rate	8°C/s

Rapi-Q HT Rapid POC RT-PCR Testing Solution

From sample to results in ~30 minutes or more (based on test parameter) for up to 32 samples.

India's 1st Portable POC Rapid PCR Solution with processing capacity of 1-32 samples for multiple parameters simultaneously
Ideal for Polyclinics, Community Health Centers, Blood Banks, Doctor Clinics, Pharmacies, Hospitals & Airports

Complete Solution for Infectious and Non- Infectious conditions with 50+ kits on single platform

No requirement of Skilled Clinician/ Operator

Automated reporting with Positive/ Negative Result interpretation along with ct values

Ideal for Screening programs of TB, HPV, 3Hdtect (HIV, HCV, HBV) in India & multiple countries worldwide.

Standalone Operation with Direct Connectivity to Printer, Barcode Scanner & LIS

Features

From Direct Swab Sample to Result in 30 Minutes

Pipette Free Operation Eliminating the need of Technically Skilled Person

High Sensitivity (99%) Specificity and Accuracy in Result

Multi-Gene Targets Allowing analysis of upto 4 genes
simultaneously

Lyophilized Format Making the kit stable at Room Temperature

Al Driven SolutionsAutomated analysis, Interpretation and Reporting

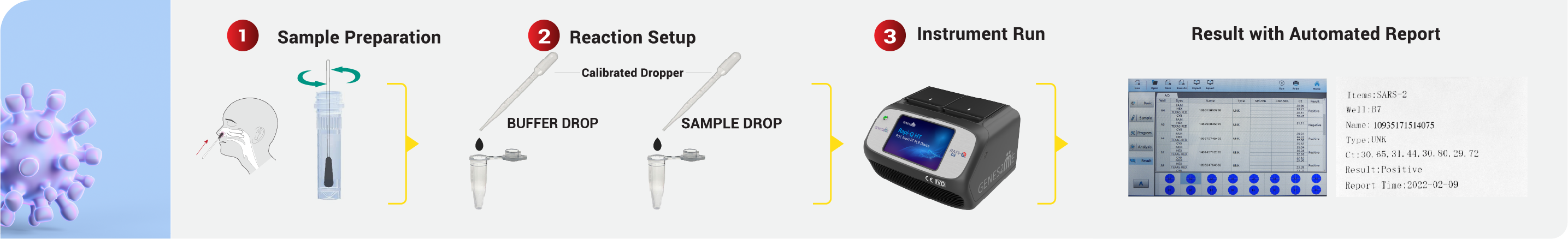

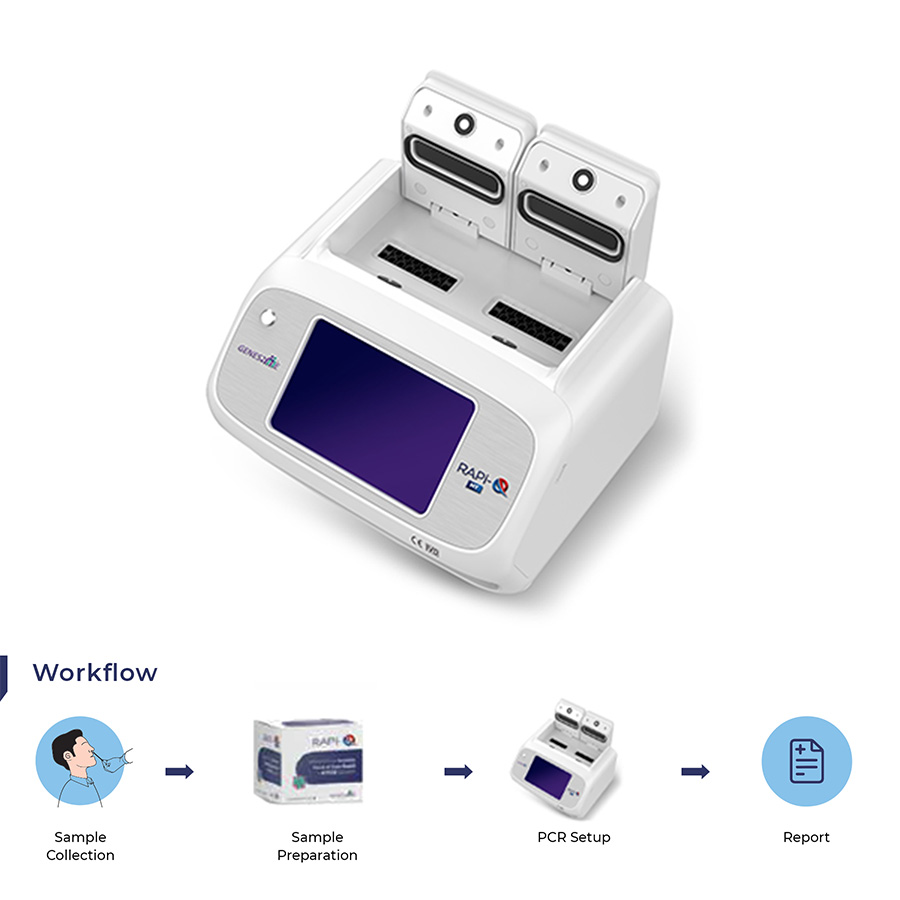

3 Easy Step to Result

Additional features of Rapi-Q HT

India’s first Portable Point of Care Rapid-PCR Solution with High Sensitivity & High Accuracy.
Compatible for both Multiplex and Singleplex Assays.
Fluorescence based detection method making it much more sensitive and accurate as compared to other POC instruments available.
Standalone Testing Solution with Touchscreen & Windows based operating System to edit and run programs by itself. Can directly connect to the printer for printing the report through Lab Software.

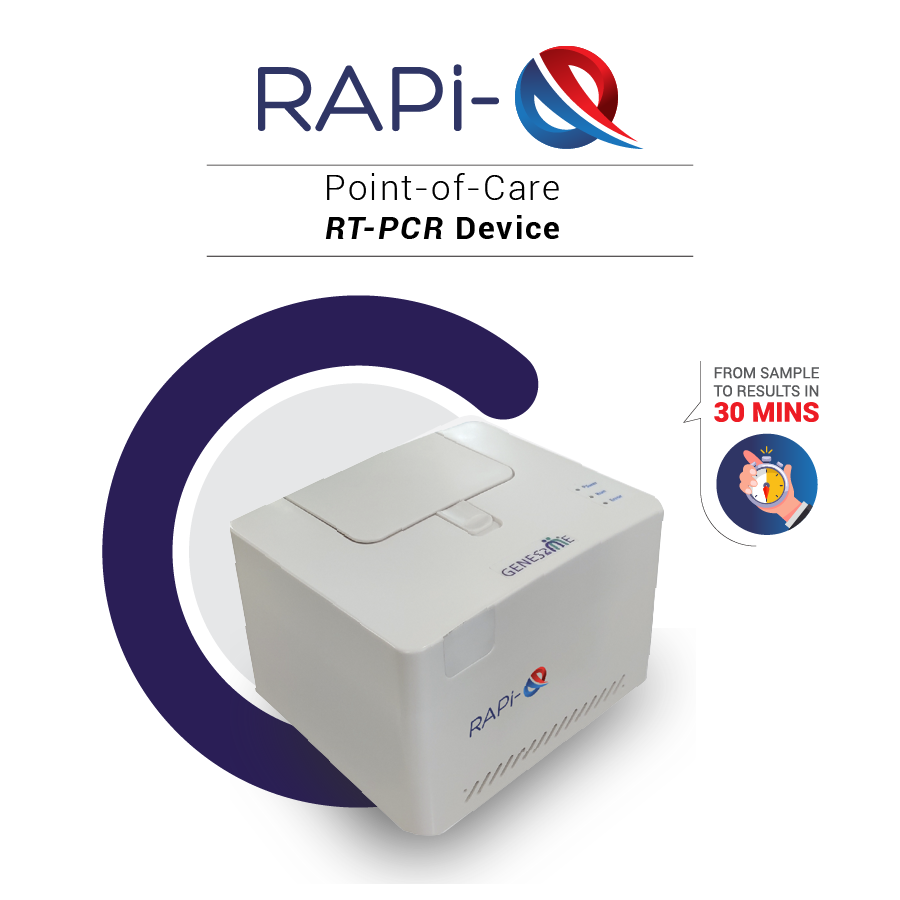

Rapi-Q Rapid POC RT-PCR Testing Solution

From sample to results in ~30 minutes or more (based on test parameter) for up to 8 samples.

CE-IVD marked POC Solution for testing up-to 8 samples

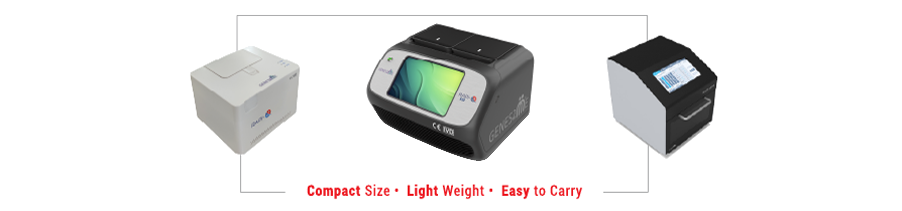

Small, Light and Easy to Carry (3kg).
From sample to result in ≤45 minutes.
Eight-well block design with four fluorescent channels.
Intended solution for rapid detection at Health clinics, Blood Banks, Research laboratory, Hospitals and Airports.
Can perform qualitative/ quantitative analysis, melting curve analysis, genotyping, etc.
High-sensitivity, superior performance and stable detection.
Ideal for detection of Tuberculosis, HPV, 3Hdtect (HIV, HCV & HBV), Tropical Fever, STIs & Respiratory diseases.
Compatible for 50+ lyophilized room temperature stable disease detection kits.
Provides Software driven automated analysis, interpretation and reports.
Holds advantage of energy saving, environmental protection and long service life.

Kits Available on RAPi-Q HT & Rapi-Q

Broad Range of Compatible Kits

Direct amplification without RNA/DNA extraction from different sample types
Based on Gold standards of Highly Sensitive Taqman Chemistry
Superior results with High Specificity

COVID Detection

LEARN MORE

COVIDtect Multiplex RT PCR Kit EF*
Rapi-Q Multiplex Real Time PCR Kit for COVID-19
COVFlu-ONE STEP RT-PCR Kit EF*
CoVFlu-II ONE STEP RT-PCR Kit EF*

Vector borne Transmission Detection

LEARN MORE

Dengue-Q Real Time PCR Kit
Malaria-Q Real Time PCR Kit
Chikungunya-Q Real Time PCR Test Kit
Zika-Q Real Time PCR kit
Y. Fever-Q Real Time PCR kit EF*
J. Encephalitis-Q Real Time PCR kit
W. Nile-Q Real Time PCR kit EF*
Para-Q Multiplex Real Time PCR kit
Para2-Q Multiplex Real Time PCR kit

Genetic Disorders

LEARN MORE

YCM-Q Real Time PCR Kit
SCA-Q Real Time PCR Kit
BT-Q Real Time PCR Kit
Thrombosis-Q Comprehensive Real Time PCR Kit
DMD- Q Real Time PCR Kit

Mycobacterium Tuberculosis Detection

LEARN MORE

TBdtect (MTB-NTM Multiplex)
TBf ind (TB Comprehensive)
MDR-TB Multiplex

HPV Detection

LEARN MORE

Human Papilloma Virus (HPV-Q) Real Time PCR Kit
HPV-Q Comprehensive Real Time PCR Kit

Infectious Diseases

LEARN MORE

H. Pylori-Q Real Time PCR Kit
BK-Q Real Time PCR Kit for BK virus
EBV-Q Real Time PCR Kit
Nipah-Q Real Time PCR Kit EF*
Rota-Q Real Time PCR Kit
VZV-Q Real Time PCR Kit
Human Parvovirus (B19)-Q Real Time PCR Kit
C. Albicans (CA)-Q Real Time PCR Kit
EEC-Q Real Time PCR Kit
SS-Q Real Time PCR Kit

Respiratory Disease Diagnostic

LEARN MORE

Influenza A/B-Q Real Time PCR Kit EF*
B. Pertussis-Q Real Time PCR Kit EF*
S. Pneumonia-Q Real Time PCR Kit EF*
M. Pneumonia-Q Real Time PCR Kit EF*
Measles-Q Real Time PCR Kit
LP-MP Multiplex Real Time PCR Kit EF*
Adeno-Q Real Time PCR Kit EF*
MERS-Q Real Time PCR Kit EF*
RSV-Q Real Time PCR Kit EF*
ParaFlu-Q Real Time PCR Kit EF*

Reproductive Health

LEARN MORE

N. Gonorrhoeae (NG)-Q Real Time PCR Kit
T. Vaginalis (TV)-Q Real Time PCR Kit
U. Urealyticum-Q Real Time PCR Kit
M. Hominis (MH)-Q Real Time PCR Kit EF*
Syphilis-Q Real Time PCR Kit
STI7-Q Real Time PCR Kit
HSV-Q Real Time PCR Test Kit

* Extraction Free Kits

Know More

Specifications
Items	Parameters	Items	Parameters
Prosessing Volume	20ul-1000ul	Operating Humidity	≤80%
Sample throughput	1-16	Extract well-to-well differences	CV≤3%
Recovery Rate	≥98%	Sterilization method	UV
Temperature control range	Room temperature +5°C-95°C	Single run time	Depend on the process requirements of the kit (0-99min)
Shake & Mix	Fast, Medium, Slow	Interface	Rj45
Applicable reagent types	Magnetic bead method	Work Voltage	AC220V@50HZ
Operation Interface	Embedded touch screen, PC software	Dimensions	260mm(L) X 200mm(W) X 210mm(H)
Operating Temperature	Room temperature - 55°C	Weight	5Kg
Transport & Storage Temperature	-20°C-85°C	-	-

Rapid Point of Care RT-PCR Testing Solution

Rapi-Q HT Rapid POC RT-PCR Testing Solution

Rapi-Q HT Rapid POC RT-PCR Testing Solution

Features

3 Easy Step to Result

3 Easy Step to Result

Additional features of Rapi-Q HT

India’s first Portable Point of Care Rapid-PCR Solution with High Sensitivity & High Accuracy.

Compatible for both Multiplex and Singleplex Assays.

Fluorescence based detection method making it much more sensitive and accurate as compared to other POC instruments available.

Standalone Testing Solution with Touchscreen & Windows based operating System to edit and run programs by itself. Can directly connect to the printer for printing the report through Lab Software.

Rapi-Q Rapid POC RT-PCR Testing Solution

Kits Available on RAPi-Q HT & Rapi-Q

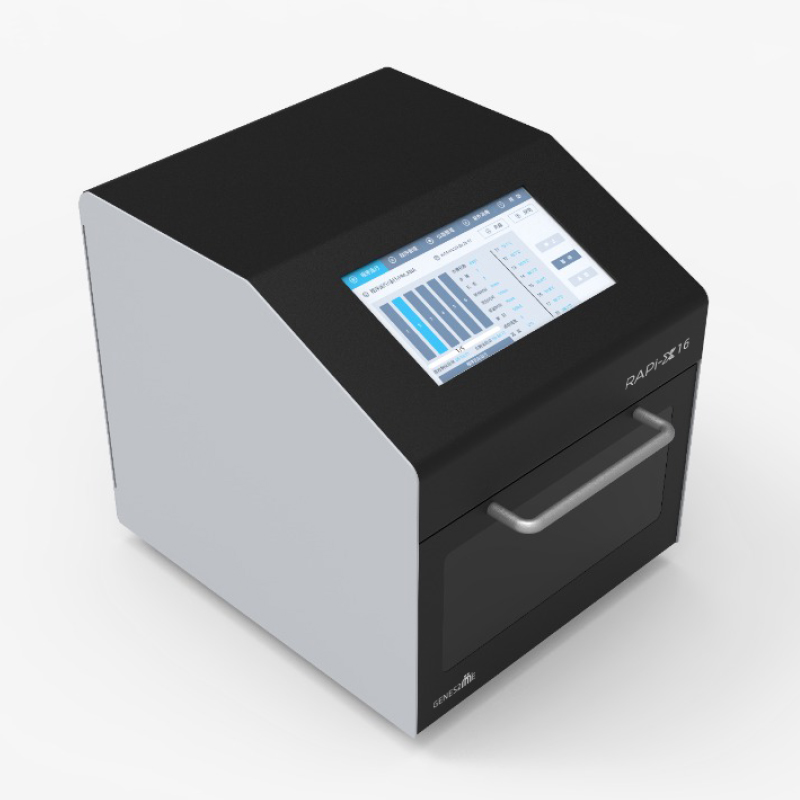

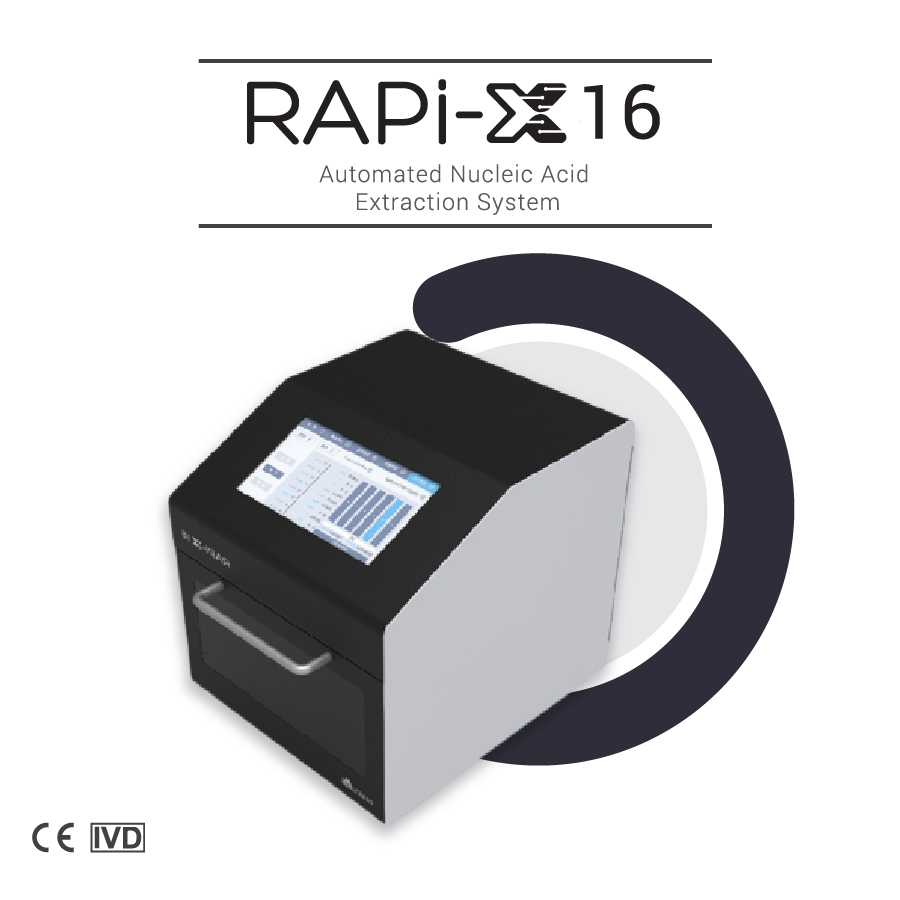

Rapi-X 16 Automated Nucleic Acid Extraction System

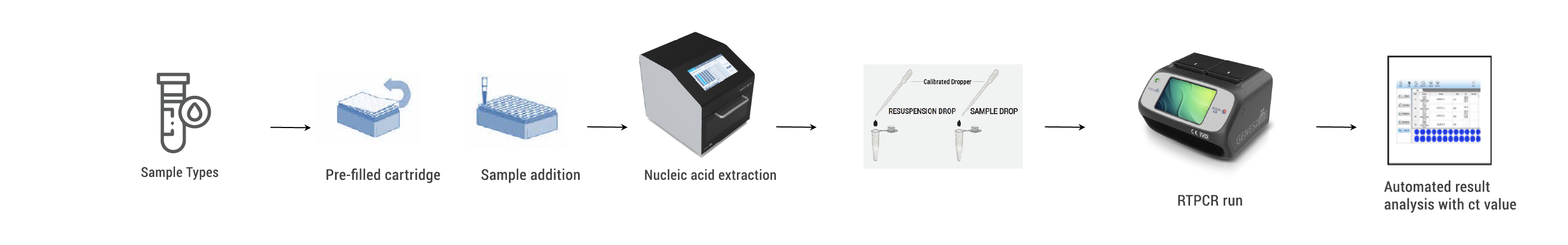

Process Flow

Rapi-X 16 Automated Nucleic Acid Extraction System

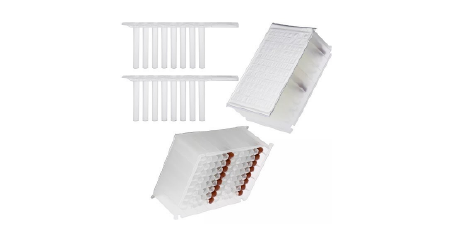

Kits available on RAPI-X 16
