EZY AutoPrep 24
Automated NGS Library Sample Preparation

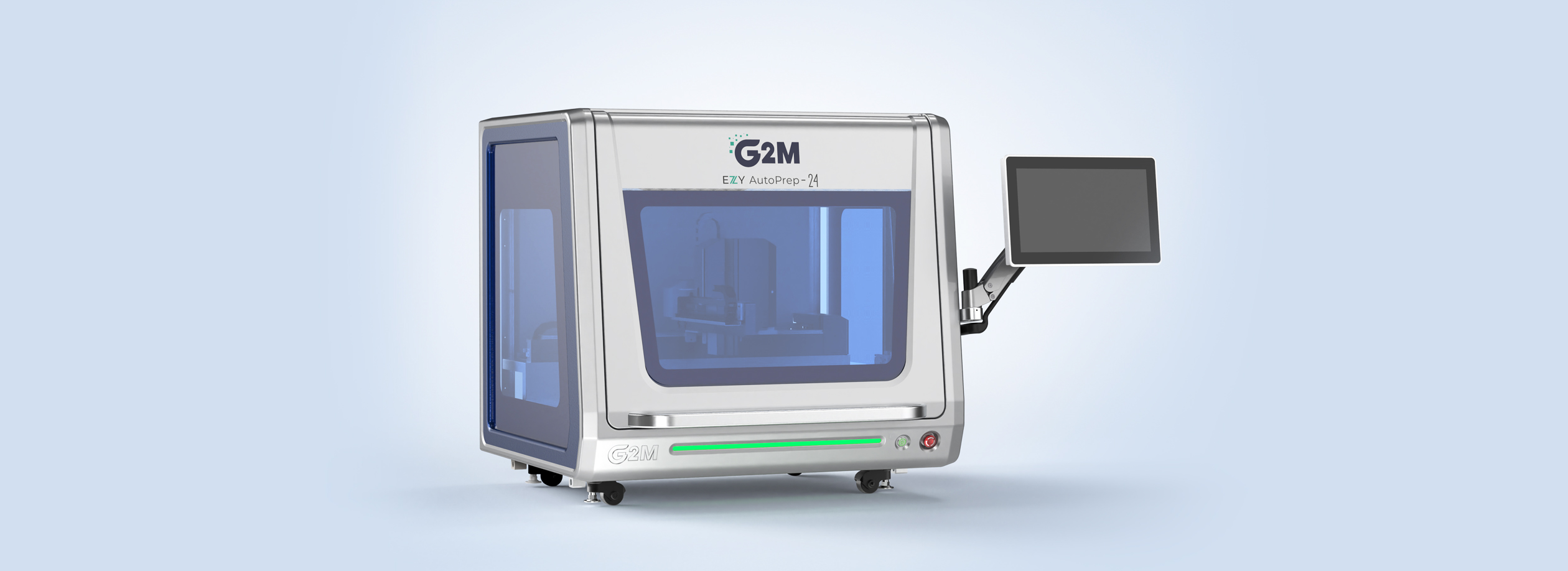

EZY AutoPrep-24 is an advanced automated NGS Library Preparation Workstation engineered for precision, reliability, and ease of use. Designed for Low to Medium-throughput sequencing laboratories, it enables the preparation of up to 16 libraries per run with minimal hands-on time.
The system seamlessly integrates all critical modules—including a Built-In Thermal Cycler, Temperature Controller, Incubator & Shaking Module, and Gripper-Based Material Handling—to execute the complete NGS library preparation workflow end-to-end from end repair and adapter ligation to PCR amplification and cleanup, EZY AutoPrep-24 ensures consistent, reproducible, and high-quality library preparation with every run.
By combining precise liquid handling, integrated thermal control, and an intuitive user interface, EZY AutoPrep-24 simplifies complex and resource consuming NGS workflows and enhances operational efficiency. The result is a robust, walk-away automation solution that delivers reliable performance, improved reproducibility, and faster turnaround times for modern sequencing laboratories.
Ensures consistent heating and cooling across the entire block, delivering identical results for all samples, whether positioned at the center or edge.
Maintains precise and stable temperatures throughout each cycle, guaranteeing reproducible performance across all wells and runs.
Provides uniform temperature control even during open-drawer or pause operations, enabling safe pipetting or reagent addition with negligible thermal deviation.
Enclosed and sealed design minimizes contamination risk and preserves sample quality during operation.
| Model No. | EZY AutoPrep - 24 |
| Throughput: | 16 |
| Deck locations: | 12 |
| Compatible Consumble: | SBS standard 96 well plate, deep well plate, reservoirs etc. |
| Tips: | 200µL and 50µL |
| Magnetic plate: | 96-well annular magnetic plate |
| XYZ Robot: | X-axis Repeated Positioning Precision: ±0.1 mm Y-axis Repeated Positioning Precision: ±0.1 mm Z-axis Repeated Positioning Precision: ±0.1 mm |

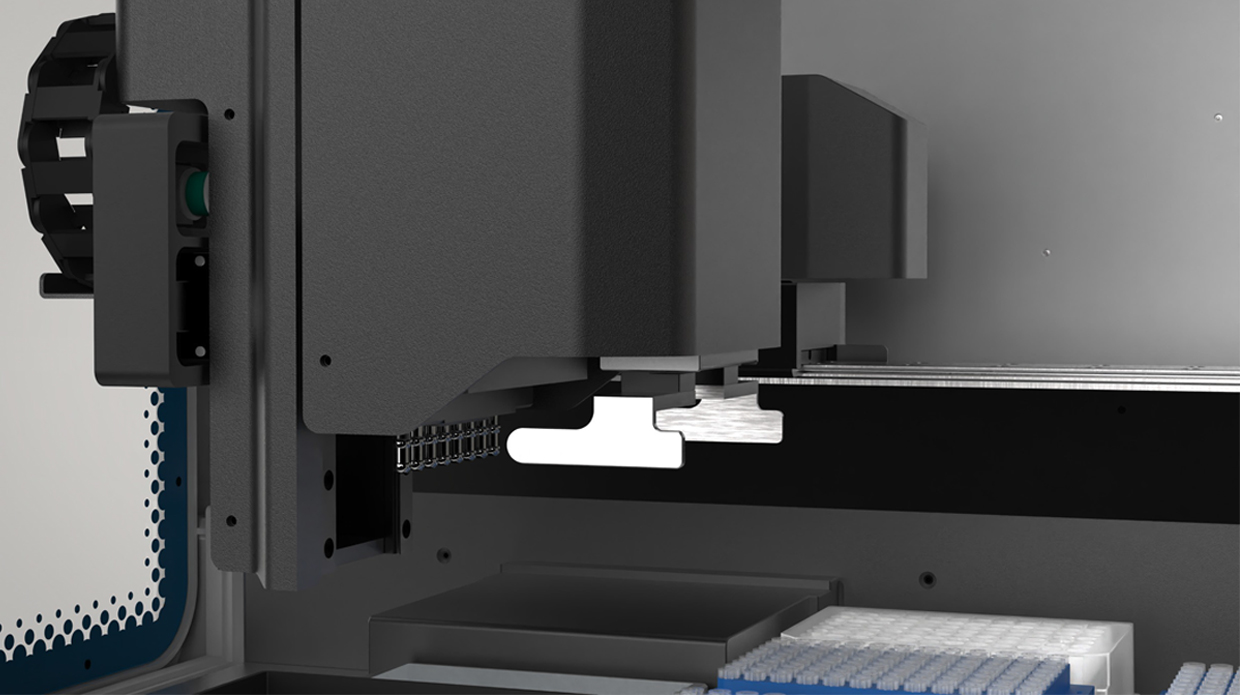

| Pipettor: | 8-channel fixed spacing pipettors Air displacement pipetting technology Pipetting range 2 - 200 µL Precision(CV) 2 µL: ≤5% , 100 µL: ≤1%, 200 µL: ≤1% |
| Gripper: | Motorized Gripper for automated consumable transfer and handling |
| Temperature control module: | Including 2 temperature control blocks. Temperature control range: 4~75°C Temperature control accuracy: ±1°C Temperature control uniformity: ±1°C |
| Fluorescence detection module: | NA |
| Heating & Oscillation Module: | (Room Temperature +5°C ) ~ 99°C Temperature Accuracy: ±2.0°C ; Temperature Uniformity: ≤ 1.5°C ; Oscillation Speed: 200rpm to 2000rpm |
| PCR Module: | Temperature Range: Lid: 30°C~ 105°C, Module: 4°C~ 99°C Uniformity: ≤ 1°C Accuracy: ± 0.5°C |
| UV sterilization: | Equipped with UV sterilization lamp, high-efficiency purification filter device |
| Interface: | Integrated 14” Colour Touch Screen Windows PC |
| Instrument port: | USB port, CAN communication |
| Ambient condition: | Temperature requirement: 20±5°C, humidity: ≤80 % |
| Instrument Weight: | 170Kg |
| Dimension (W×D×H): | 940mm W X 860mm D X 860mm H |
| Power input: | 100~240 V, 50/60 Hz, rated power 1700 W |
|
Cat No. |
Commercial Name |
|
G2MBR4-0712 |
EZY AutoPrep - 48 Automated NGS Library Preparation Workstation |
|
G2MBR4-0660 |
EZY AutoPrep - 24 Automated NGS Library Preparation Workstation |
