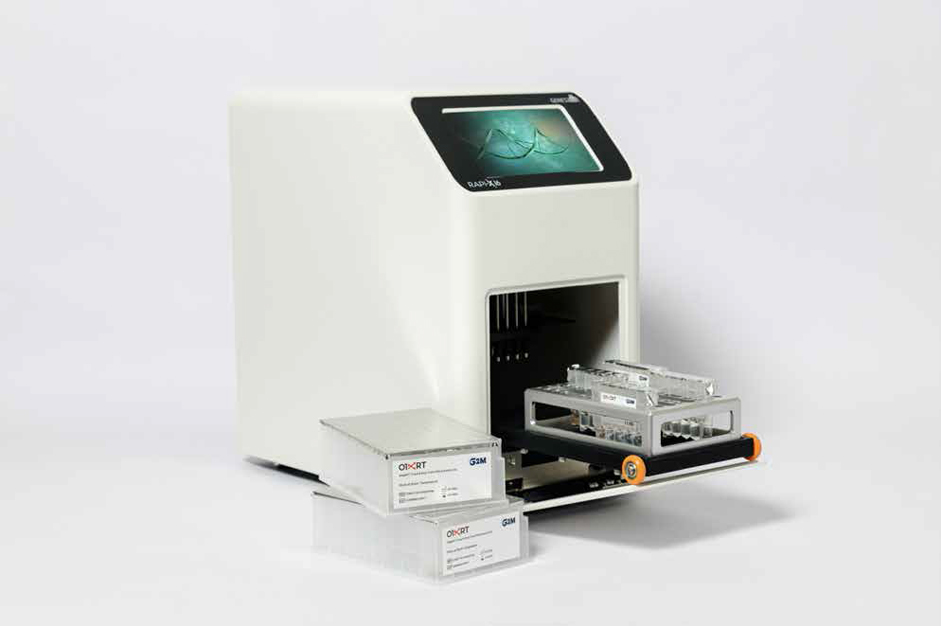

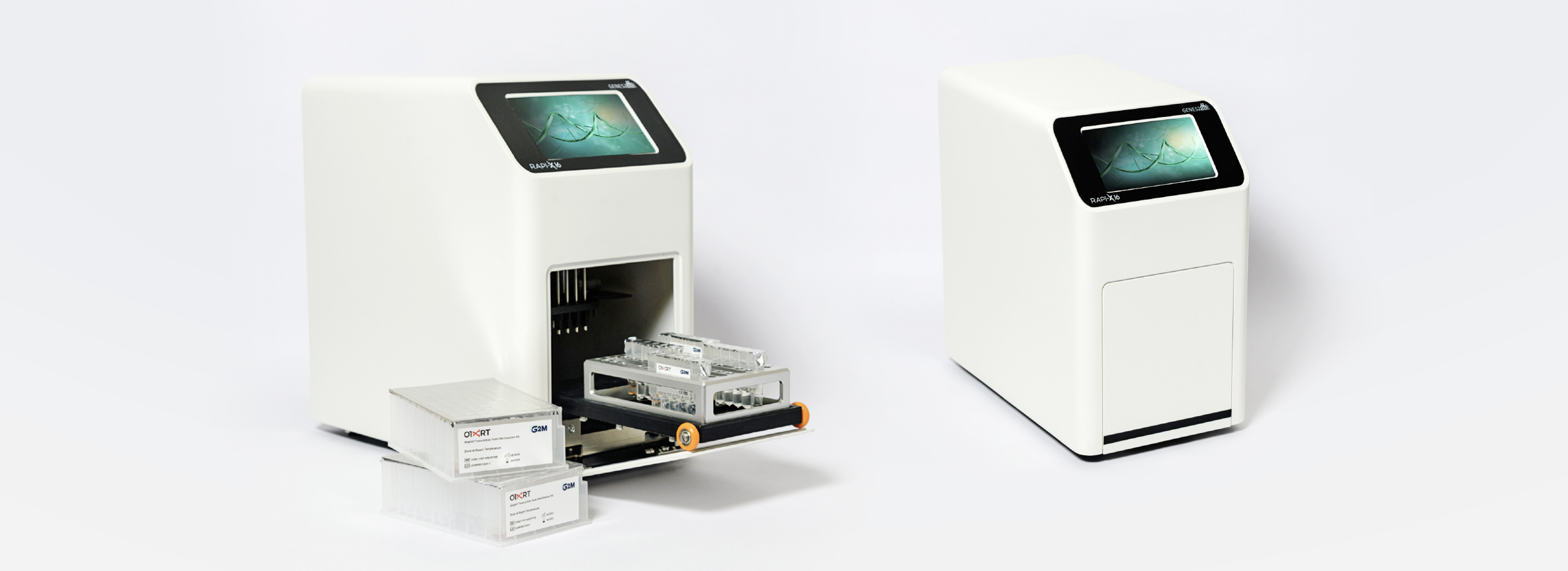

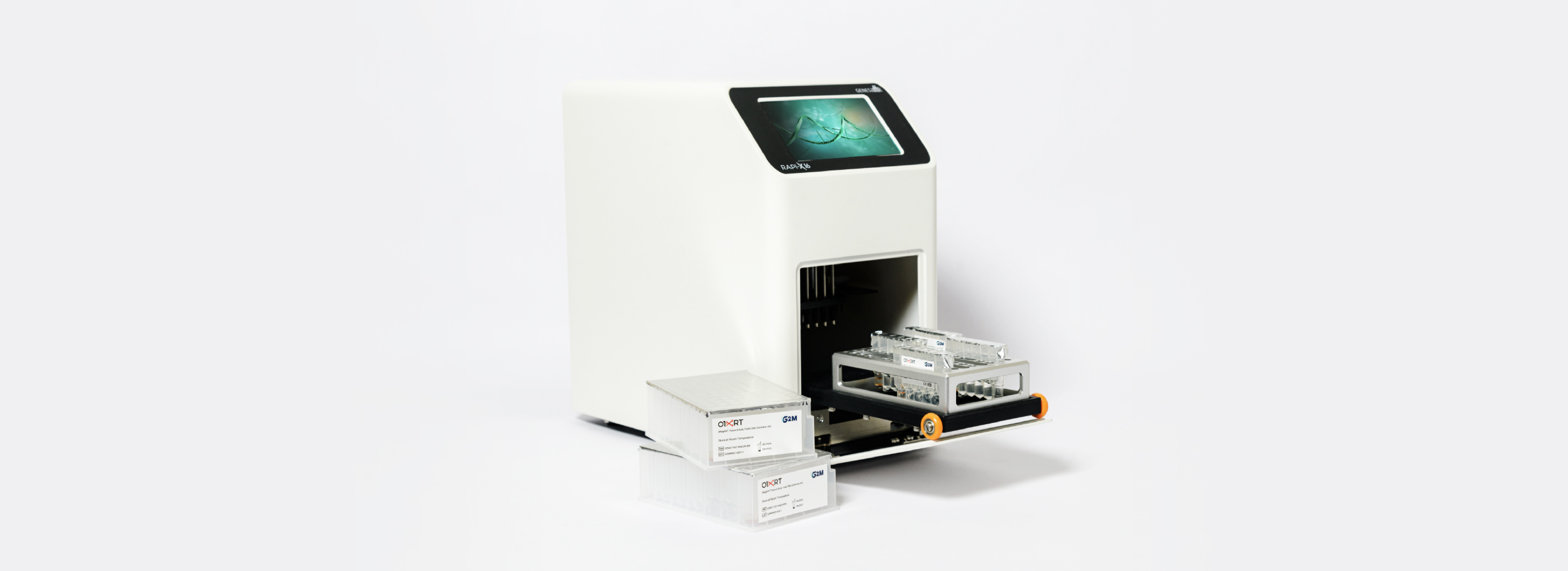

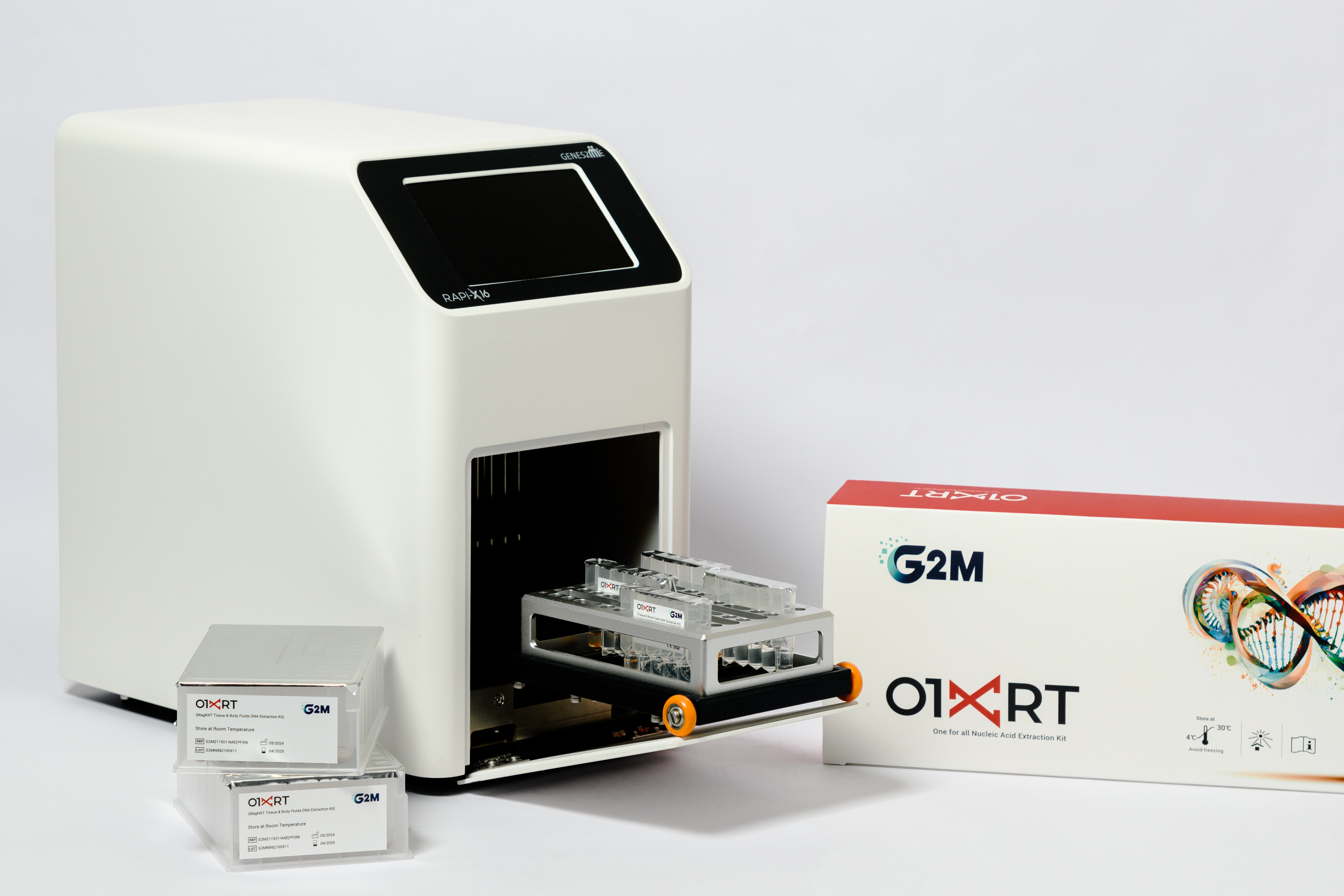

Rapi-X16
Nucleic Acid Extraction System
Rapi-X16 Automated Nucleic Acid Extraction System is based on magnetic bead based separation technology. 96-deep well plates and different reagents are utilized which are suitable for purification of various clinical sample including blood/tissue/viruses/cells. It maintains temperature uniformity with accurate controls. The instrument uses the special magnetic rods to absorb, transfer and release magnetic beads, so as to purify high quality nucleic acid.
Genes2me offers a comprehensive portfolio of digital PCR assays and kits for numerous applications including mutation detection, copy number determination, genome edit detection, gene expression, expert design assays, residual DNA quantification, and library quantification.
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
| Model No. | Rapi-X16 |
| Processing Volume: | 30-1000µL |
| Sample throughput: | Upto 16 |
| Magnetic Bead Recovery: | >98% |
| Number of magnets: | 16 |
| Sample Processing time: | 15 mins |
| Purification Sensitivity (detection rate): | >95% |
| Extraction well to well differences: | 30µL - 100µL |
| Consumables: | 96 deep well plate with comb |
| Heating Temperature: | 25°C - 120°C |
| Oscillating mix: | Multi-level adjustable |
| Reagent Type: | Magnetic bead method |
| Operation Interface: | Embedded touch screen |
| Operation Program: | Android System |
| Data Storage: | Can store >500 groups of programs |
| Exhuast Method: | Fan |
| Extension module: | 1 USB |
| Flashlight: | YES |
| UV irradiation: | YES |
| Low noise processing: | Noise 65dB |
| Product Dimensions: | 250mm X 320mm X 275mm |
| Weight: | 6Kg |
| Power supply: | AC: 198-242V |
|
Cat No. |
Commercial Name |
|
G2MI80002 |
RapiX-16 - Automated Nucleic Acid Extraction System |
|
G2MI80001 |
RapiX-96 - Automated Nucleic Acid Extraction System |
