SpiNXT Forensic DNA Extraction Kit

SpiNXT Forensic DNA Extraction Kit

The SpiNXT Forensic DNA Extraction Kit is a high-performance solution designed for the isolation of high-quality genomic DNA from challenging forensic and trace biological samples. The kit is optimized to recover DNA from low-copy, degraded, and inhibitor-rich samples, ensuring consistent performance across a wide range of forensic matrices. Its robust chemistry and streamlined workflow make it suitable for reliable DNA recovery required in forensic identification, human genetics, and molecular profiling studies.

Kit components: Buffer LB | Buffer BW1 | Buffer BW2 | Proteinase K | Proteinase Dissolving Buffer | Buffer AE | Buffer LBTC | Buffer TBLB

Blood DNA Extraction

Overview


The SpiNXT Forensic DNA Extraction Kit is based on silica membrane spin column technology and is designed for efficient purification of genomic DNA from a wide range of forensic and trace biological samples. The kit supports DNA extraction from Mammalian/Human cells & tissues, human whole blood, dried blood spots, cell culture pellet, swabs, buccal cells, buffy coat, plasma, serum, lymphocytes, challenging body fluids, vaginal and semen stains, bone, tooth, hair, chewing gum, cigarette butts and other challenged forensic samples. Sample processing involves optimized chemical and enzymatic lysis to ensure effective disruption of cellular and non-cellular matrices, including aged and environmentally exposed samples. Released DNA selectively binds to the silica membrane under optimized binding conditions, while proteins, PCR inhibitors, and other contaminants are efficiently removed through wash steps. Purified DNA is finally eluted using a low-salt buffer, yielding DNA suitable for sensitive downstream forensic and molecular biology applications.

Product Features


Blood DNA Extraction Kits
  • Binding Mechanism: Super paramagnetic beads
  • Recommended Input Amount: ~ 25mg tissue/200µl for body fluids
  • Elution Volume: ≥ 30 µl
  • Purity: A260/280 - 1.8±0.1, A260/230 - 2.0±0.1
  • Expected Yield: >7 µg

Applications


Forensic DNA Profiling
  • Reliable extraction of genomic DNA for human identification studies.
Short Tandem Repeat (STR) Analysis
  • High-quality DNA suitable for forensic STR amplification.
Restriction Fragment Length Polymorphism (RFLP)
  • DNA compatible with restriction enzyme digestion and fragment analysis.
End-Point PCR & qPCR
  • Amplification of low-copy DNA from trace forensic samples.
Human Identity & Kinship Analysis
  • DNA isolation for paternity testing and relationship studies.
SNP & Genetic Marker Analysis
  • High-purity DNA for population genetics and individual identification.

Panel Specifications


Format: Mini spin column
Technology: Silica membrane
Sample Type: Mammalian/Human cells & tissues, human whole blood, dried blood spots, cell culture pellet, swabs, buccal cells, buffy coat, plasma, serum, lymphocytes, challenging body fluids, vaginal and semen stains, bone, tooth, hair, chewing gum, cigarette butts
Yield: Depends upon the quality & quantity of the starting material used
Target: Genomic DNA
A260/280: 1.6–1.9
Available Pack Sizes: 50 T, 250 T
Throughput Compatibility: Manual

Workflow / How It Works


Extraction workflow

Data Analysis and Reporting


Forensic DNA Extraction

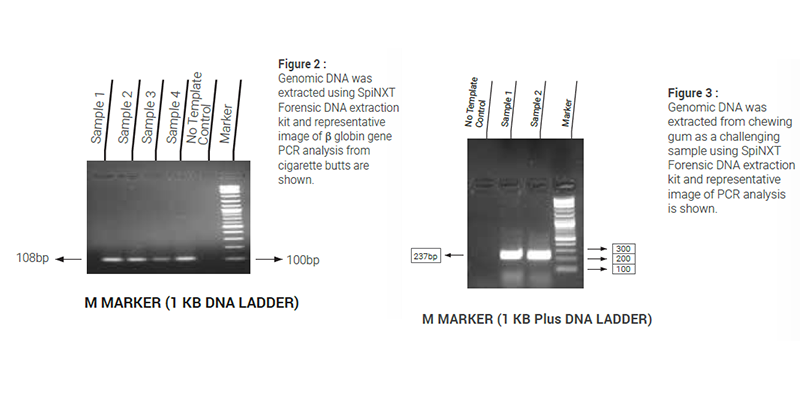

DNA Bioanalyzer

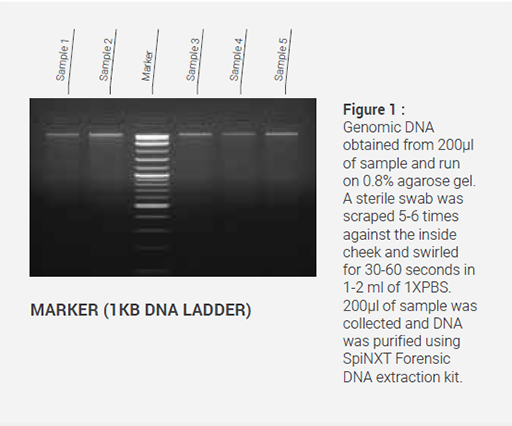

Data/Report
Data/Report

Ordering Information


Commercial Name Cat No. Pack Size
SpiNXT Forensic DNA Extraction Kit G2MBR4-0583 50 Test
SpiNXT Forensic DNA Extraction Kit G2MBR4-0584 250 Test
