MagNXT Forensic DNA Extraction Kit

MagNXT Forensic DNA Extraction Kit

The MagNXT Forensic DNA Extraction Kit is a high-performance, magnetic bead-based solution designed for the efficient isolation of high-quality genomic DNA from forensic and challenging biological samples. Optimized protocols ensure reliable DNA recovery from low-template, degraded, and inhibitor-rich samples, making the kit ideal for forensic laboratories, identity testing, and research applications.

Kit components: Magnetic Bead Particles | Buffer LB | Buffer BW1 | Buffer BW2 | Proteinase K | Proteinase Dissolving Buffer | Buffer AE| Buffer LBTC | Buffer TBLB

Blood DNA Extraction

Overview


MagNXT Forensic DNA Extraction Kit The MagNXT Forensic DNA Extraction Kit combines optimized lysis chemistry with advanced superparamagnetic bead-based purification technology to deliver consistent and reproducible DNA extraction across a broad range of forensic sample types. The kit is designed to efficiently isolate genomic DNA from mammalian/human cells and tissues, including fresh or frozen whole blood and anticoagulant-treated blood, Cell culture pellet, Swabs, buccal cells, Vaginal and semen stains, Bone, Tooth, Hair, Chewing gum, Cigarette butts & other Forensic samples. Optimized binding and washing conditions enable effective removal of proteins, inhibitors, and contaminants, while purified DNA is eluted in a low-salt buffer, ready for downstream analysis. The streamlined workflow eliminates the need for hazardous organic solvents such as phenol-chloroform or alcohol precipitation, ensuring a safe, fast, and user-friendly extraction process, even for trace and highly challenging forensic samples.

Product Features


Forensic DNA Extraction Kits
  • Binding Mechanism: Super paramagnetic beads
  • Recommended Input Amount: Depend upon the type of sample used
  • Elution Volume: ≥ 30 µl
  • Purity: A260/280 - 1.8±0.1, A260/230 - 2.0±0.1
  • Expected Yield Depending upon the type, quality & quantity of the starting material used

Applications


Forensic DNA Profiling

  • Enables reliable extraction of genomic DNA from crime scene and trace biological samples.

STR and Identity Analysis

  • Provides high-quality DNA suitable for short tandem repeat (STR) analysis and human identification.

PCR and qPCR-Based Assays

  • Supports robust amplification of DNA from low-copy and challenging samples.

Forensic and Criminal Investigations

  • Suitable for processing blood stains, semen stains, saliva, hair, bone, tooth, and touch DNA samples.

Research and Reference Testing

  • Useful for forensic research, validation studies, and population genetics applications.

Panel Specifications


Format: Paramagnetic Beads
Technology: Magnetic Bead Base
Sample Type: Fresh or frozen Whole blood, Dried blood spots, Cell culture pellet, Swabs, buccal cells, Buffy coat, Plasma, Serum, Lymphocytes, Challenging body fluids, Vaginal and semen stains, Bone, Tooth, Hair, Chewing gum, Cigarette butts & other Forensic samples
Yield: Depending upon the type, quality & quantity of the starting material used
Target: Genomic DNA
A260/280: 1.6–1.9
Available Pack Sizes: 50 T, 250 T
Throughput Compatibility: Manual

Workflow / How It Works

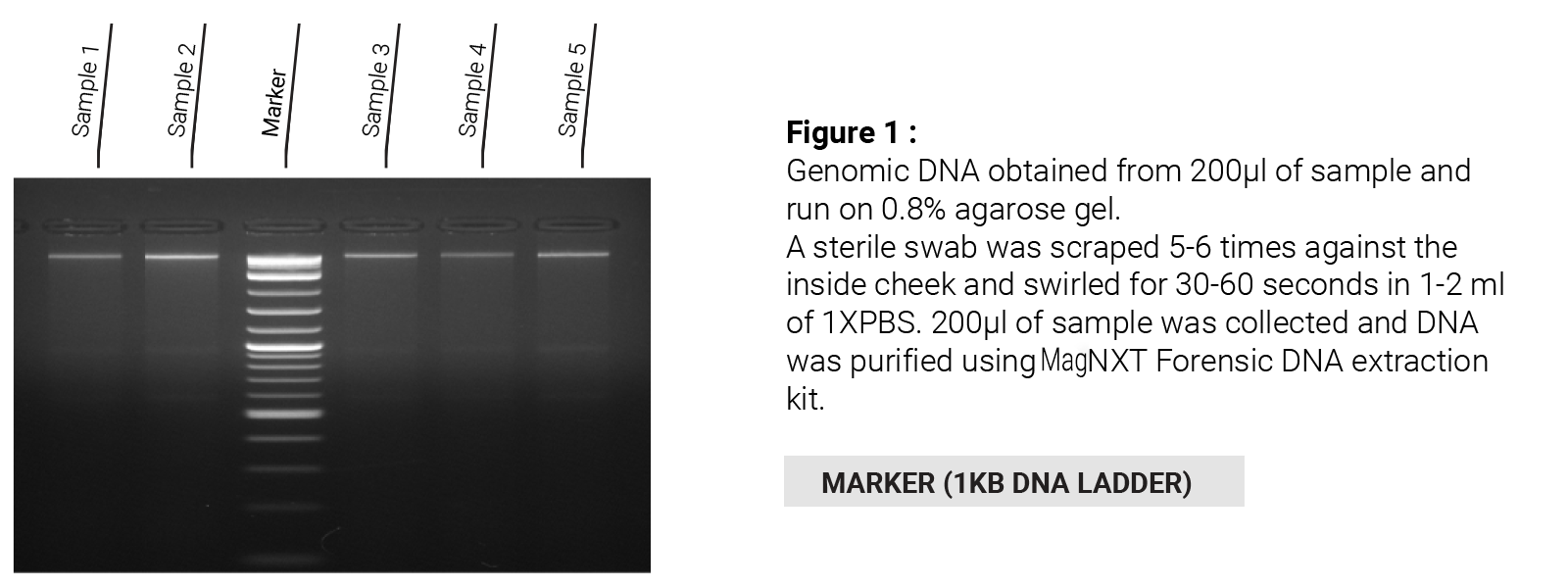

Extraction workflow

Data Analysis and Reporting


forensic

Ordering Information


Commercial Name Cat No. Pack Size
MagNXT Forensic DNA Extraction Kit G2MBR4-0595 50 T
MagNXT Forensic DNA Extraction Kit G2MBR4-0597 250 T
MagNXT Forensic DNA Extraction Kit G2MBR4-0596 480 T
